North Texas clay soils—particularly the Vertisols and Blackland Prairie clays common throughout Denton County—expand when wet and shrink when dry, creating a cycle of soil heave and foundation settlement that can crack walls, jam doors, and compromise your home's structural integrity. Understanding how this shrink-swell soil behaves is the first step toward building a concrete slab foundation that lasts.
If you're building a home, adding on to one, or evaluating foundation problems in the Denton area, you're dealing with some of the most challenging soil conditions in the country. TriStar Built has been engineering concrete slab foundations on North Texas clay for nearly two decades—and the soil under your property is something we think about on every single project.
This guide breaks down exactly what's happening beneath your slab, why it matters, and what experienced concrete foundation contractors do differently to protect your home from the ground up.
North Texas sits on a geological formation called the Blackland Prairie, where the native soil is dominated by expansive clay minerals—primarily smectite—that absorb water and swell with tremendous force. This shrink-swell cycle generates pressure that's been measured as high as 15,000 pounds per square foot, enough to lift and crack even well-built concrete slabs.

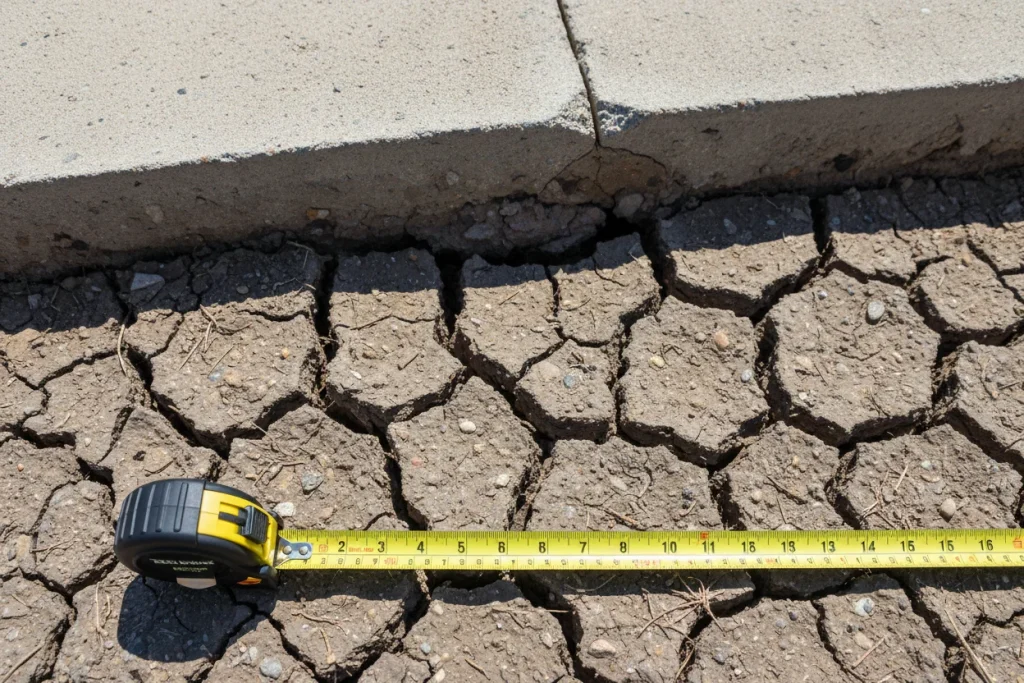

Here's the thing about clay soil in Denton County: it doesn't just sit there. It's constantly moving. During a wet spring, the clay absorbs moisture and pushes upward against your slab. During a dry Texas summer, that same clay loses water and contracts, pulling support away from the edges and center of your foundation. Engineers call this differential settlement, and it's the primary cause of foundation damage across the DFW metroplex.
The Vertisols found throughout Denton County and the surrounding North Texas region are among the most reactive soil types in the country. According to the U.S. Geological Survey's expansive soils mapping, North Texas falls within a zone classified as having "very high" expansion potential. The expansive clay here can increase in volume by up to 30% when fully saturated—that's your foundation moving.
And the climate makes it worse. North Texas doesn't get gentle, steady rain. We get heavy downpours followed by extended dry spells—exactly the pattern that drives the most aggressive soil heave and contraction cycles.
| Factor | Impact on Concrete Slab Foundation | Severity in Denton County |
| Shrink-swell clay (Vertisols) | Creates upward heaving and edge settlement | Very High |
| Seasonal moisture variation | Drives repeated expansion-contraction cycles | High |
| Soil heave pressure | Can exceed 15,000 PSF against slab underside | Very High |
| Tree root moisture draw | Causes localized soil shrinkage near foundation | Moderate to High |
| Poor drainage grading | Concentrates moisture unevenly around slab perimeter | High |
Expansive clay damages concrete slab foundations through two primary mechanisms: upward heaving when the soil swells with moisture, and differential settlement when the soil dries and contracts unevenly. The result is a slab that no longer sits flat—leading to interior cracks, stuck doors and windows, and visible gaps between walls and ceilings.
Most homeowners don't realize that the damage they're seeing inside their house—a crack running diagonally from a door frame, a window that suddenly won't close, tile popping off a bathroom floor—started underground. The foundation settlement process is usually slow, developing over months or years as North Texas weather cycles stress the slab.
Two patterns dominate concrete slab foundation failure in our region. Center heave happens when moisture migrates inward under the slab (where it's protected from evaporation) and the clay beneath the center swells more than the clay at the edges—pushing the middle up while the perimeter stays stable. Edge settlement is the opposite: prolonged dry periods cause the exposed perimeter soil to contract, dropping the slab edges while the center remains supported.
Both patterns create differential movement—and that's where structural damage starts. A slab can handle uniform movement reasonably well. When one section moves independently, the concrete flexes beyond its capacity and cracks develop.
You don't need a structural engineer to spot the early indicators that clay soil is affecting your slab. Here's what to watch for:
These aren't cosmetic issues. They're your house telling you the concrete foundation is responding to the soil beneath it. Catching these early means the difference between a manageable correction and a major structural repair.
| Damage Type | Cause | Where to Look | Urgency |
| Diagonal wall cracks | Differential settlement | Door/window corners | Moderate |
| Sticking doors and windows | Slab shifting under bearing walls | Interior door frames | Moderate |
| Floor tile cracking | Center heave or edge drop | Kitchen, bathroom, entryway | Moderate to High |
| Stair-step brick cracks | Perimeter settlement | Exterior walls, especially corners | High |
| Ceiling-wall separation | Uneven slab movement across spans | Upper wall-ceiling joints | High |
An experienced North Texas concrete slab contractor addresses clay soil challenges through proper subgrade preparation—including soil testing, lime stabilization, moisture conditioning, and engineered reinforcement systems like post-tension slabs—rather than treating the pour as a standard installation on stable ground.
This is where the difference between a contractor who understands North Texas geology and one who doesn't becomes painfully obvious. A contractor from outside the region might compact the native soil, lay some gravel, and pour. That approach works on sandy or stable soils. It doesn't work here. And honestly? It's one of the most common reasons we get called in to assess concrete foundation problems on homes that are only a few years old.
Before any responsible contractor pours a slab in Denton County, the soil needs to be tested. A geotechnical engineer takes core samples, measures the plasticity index (PI) of the clay, and determines the potential vertical rise (PVR)—how much the soil could swell under the slab. This report drives every engineering decision: slab thickness, reinforcement type, beam depth, and whether lime stabilization is needed.
Skipping the soil test is like building a roof without checking for leaks. You might get lucky—but on Denton County clay, the odds aren't in your favor.
When the geotechnical report confirms high-expansion soil (and in most of Denton County, it will), the standard treatment is lime stabilization. This involves mixing hydrated lime into the upper layers of the clay subgrade, chemically altering the clay particles and dramatically reducing their ability to absorb water and swell. The treated soil is then compacted and moisture-conditioned before concrete work begins.
Proper subgrade preparation also includes:

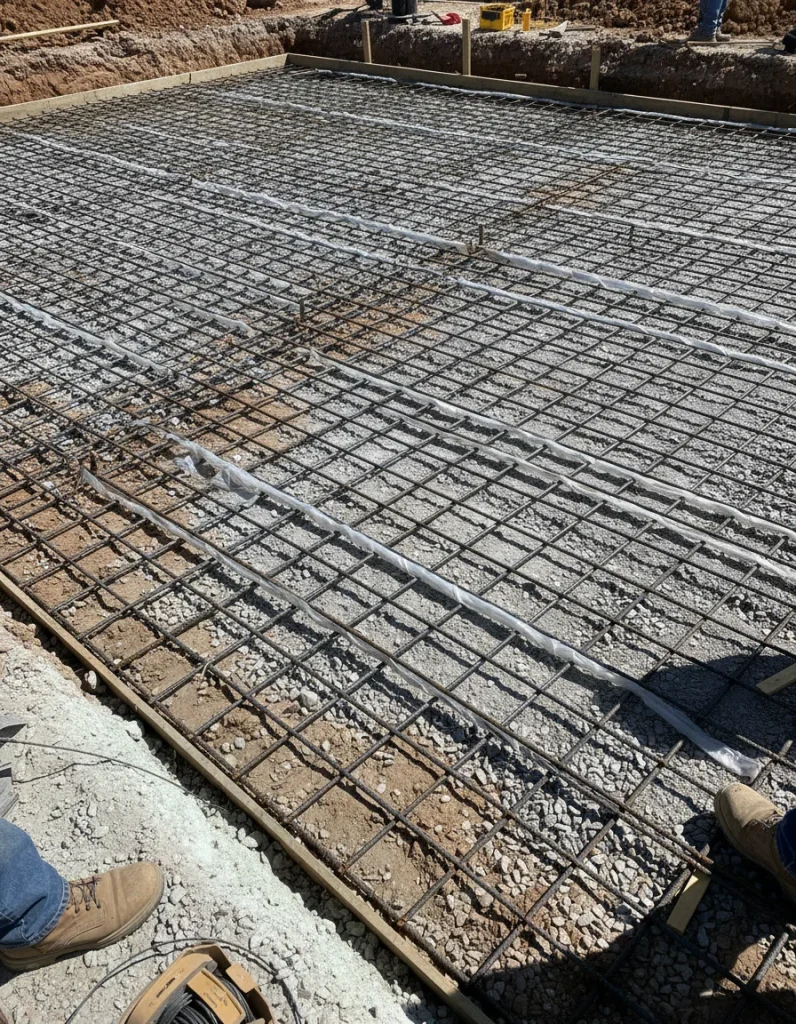

In North Texas, two reinforcement approaches dominate concrete slab foundation construction. Conventional rebar slabs use a grid of steel reinforcement bars to prevent cracking and hold the slab together during movement. Post-tension slabs use high-strength steel tendons that are tensioned after the concrete cures, actively compressing the slab and significantly increasing its resistance to flexural stress from soil movement.
For most residential construction on expansive clay soil in the DFW area, post-tension slabs have become the preferred choice. Active compression helps the slab bridge localized soil voids that develop during dry periods, rather than cracking and separating. The engineering is more complex and the materials cost more, but the long-term performance on reactive soils justifies the investment.
| Approach | How It Works | Best For | Clay Soil Performance |
| Conventional rebar slab | Steel bars resist tension after cracking | Stable soils, light structures | Moderate — cracks may still develop |
| Post-tension slab | Steel tendons compress slab after cure | Expansive clay, residential homes | High — bridges soil voids effectively |
| Lime stabilization | Chemical treatment reduces clay reactivity | All construction on reactive soil | High — addresses root cause |
| Pier and beam foundation | Elevated structure on deep piers | Severe expansion, sloped sites | Very High — isolates from soil contact |
| Moisture management | Drainage + perimeter watering control | Post-construction maintenance | Moderate — ongoing owner effort required |
Protecting a concrete slab foundation on North Texas clay requires consistent moisture management around the foundation perimeter, proper drainage grading, strategic landscaping decisions, and periodic visual inspections — because the soil never stops moving, and neither should your attention to your home's most critical structural element.
Pouring the slab correctly is only half the equation. What happens in the years after construction matters just as much—and most concrete slab contractors never talk about it. At TriStar Built, we educate every client on long-term foundation longevity practices because we've seen too many well-built slabs develop problems that were entirely preventable.
The single most important thing you can do for your slab is manage the moisture around it. That means:
Trees planted too close to a house can pull enormous amounts of moisture from the soil, causing localized foundation settlement on one side of the slab. Large trees should be planted at least their mature canopy width from the foundation. Existing mature trees near the slab may need root barriers installed to redirect growth.
Flower beds against the house can also cause problems if overwatered—creating a moisture differential between the soil under the slab edge and the soil beyond it. Consistent, moderate watering beats alternating between flooding and neglect.
Not every crack means your foundation is failing. Hairline cracks in a concrete slab are normal—concrete shrinks slightly as it cures. But if you're noticing the warning signs we covered earlier—diagonal cracks at door frames, seasonal door sticking, stair-step cracks in exterior brick—it's time for a professional assessment.
TriStar Built's approach is straightforward: we evaluate the soilis behavior, determine whether slab movement is active or stabilized, and recommend the most appropriate response. Sometimes that's monitoring. Sometimes it's drainage correction. But the first step is always understanding the soil—because in North Texas, the answer to almost every foundation question starts with the clay.
Denton County sits on Blackland Prairie Vertisols—a high-plasticity expansive clay that swells when wet and shrinks when dry, ranking among the most reactive soil types in the United States.
Clay expands and contracts with moisture changes, creating uneven pressure beneath the slab. This differential movement causes cracking, uneven settling, sticking doors, and interior damage.
Lime stabilization mixes hydrated lime into the clay subgrade, chemically altering the soil to reduce water absorption and swelling. It's standard treatment for foundation work on DFW-area clay.
Yes. A geotechnical soil report measures the clay's plasticity index and potential vertical rise, determining slab thickness, reinforcement type, and whether lime treatment is necessary.
A post-tension slab uses steel tendons tensioned after the concrete cures, compressing the slab. This provides superior resistance to clay soil movement compared to conventional rebar-only reinforcement.
Watch for diagonal cracks at door and window corners, sticking doors, gaps between walls and ceilings, cracked floor tiles, and stair-step cracks in exterior brick.
Yes. Consistent soil moisture around the slab perimeter during dry spells prevents clay from shrinking and pulling support away. A soaker hose 12-18 inches from the foundation is the standard approach.
Plant large trees at a distance equal to at least their mature canopy width from the foundation. Root systems draw significant moisture from clay, causing localized soil shrinkage and settlement.
Slab-on-grade sits directly on the soil, relying on subgrade prep and reinforcement to resist clay movement. Pier and beam elevates the structure on deep piers, isolating it from soil contact entirely.
A well-engineered slab with proper soil prep, reinforcement, and drainage can last 50 years or more. Performance depends on construction quality and how consistently moisture is managed afterward.
Building on North Texas clay soil isn't optional—it's the reality for every homeowner and builder in Denton County. But the challenges expansive clay soils create aren't mysteries. They're well-understood engineering problems with proven solutions—when the contractor doing the work has the regional knowledge to apply them correctly.If you're planning a new build, evaluating an existing foundation, or want to understand what's happening beneath your home, reach out to TriStar Built for a consultation. We'll walk your property, explain what the soil is telling us, and give you a clear, honest assessment—no pressure, no guesswork.
